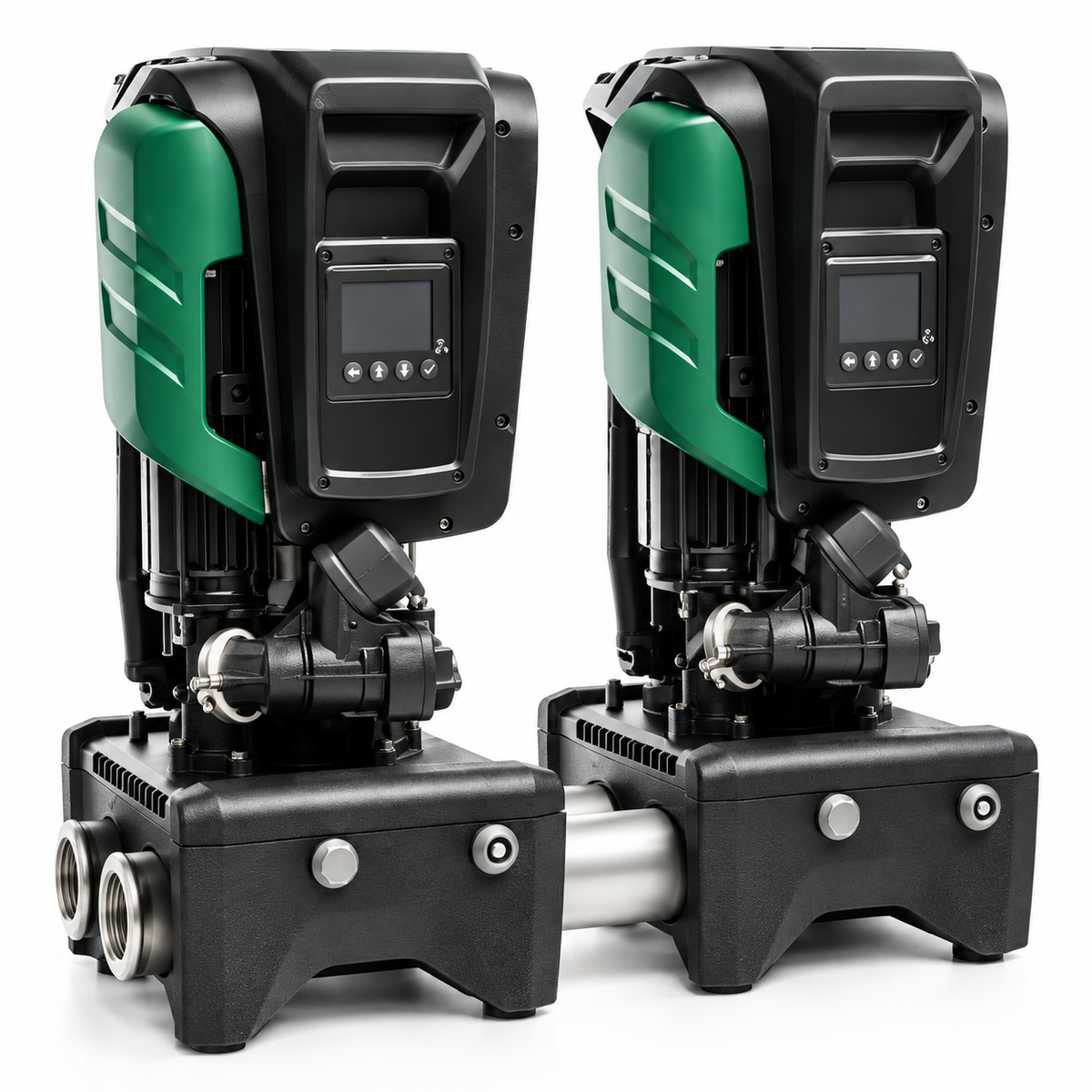

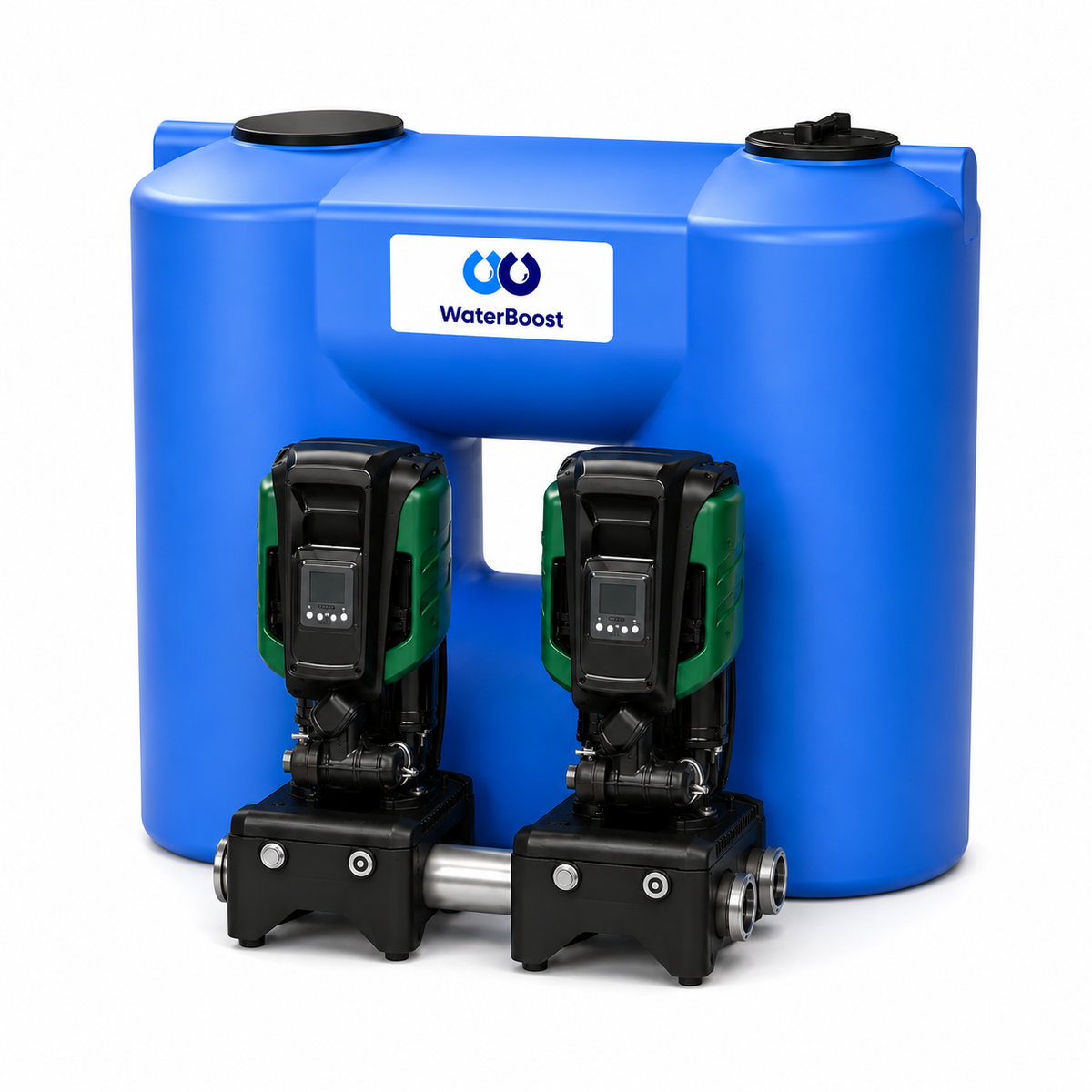

A 2,000 litre slimline break tank paired with a twin DAB Esybox MAX 60/120 M booster set on a 2 Esydock MAX base. The highest pressure available in the Grand range without moving to three-phase — 6.7 bar from an ordinary 230 V supply, with 240 L/min still in hand at a full 6 bar.
-
69 m constant head held flat to 200 L/min — and 240 L/min still available at a full 6 bar.
-
420 L/min at 3 bar, rising to 580 L/min maximum — the highest output in the single-phase range.
-
Suits taller buildings — a full bar more head than the 45/120 M, which matters once you are lifting past three storeys.
-
Duty/standby plus duty-assist — the second pump joins automatically when demand calls for it, and duty rotates so wear is shared.
-
DConnect Wi-Fi built in, with Modbus and BMS interfacing available via the optional esy I/O module.
Part no. 2702G810 Established 1975 UK stock Fast dispatch
