The WaterBoost WB-Coffin 200 Mini3 is a compact, variable-speed water boosting system engineered to overcome low water pressure or inadequate flow in domestic and light commercial applications. Designed specifically for installations where space is restricted, it offers a highly practical and cost-effective solution while still delivering exceptional reliability, performance, and build quality.

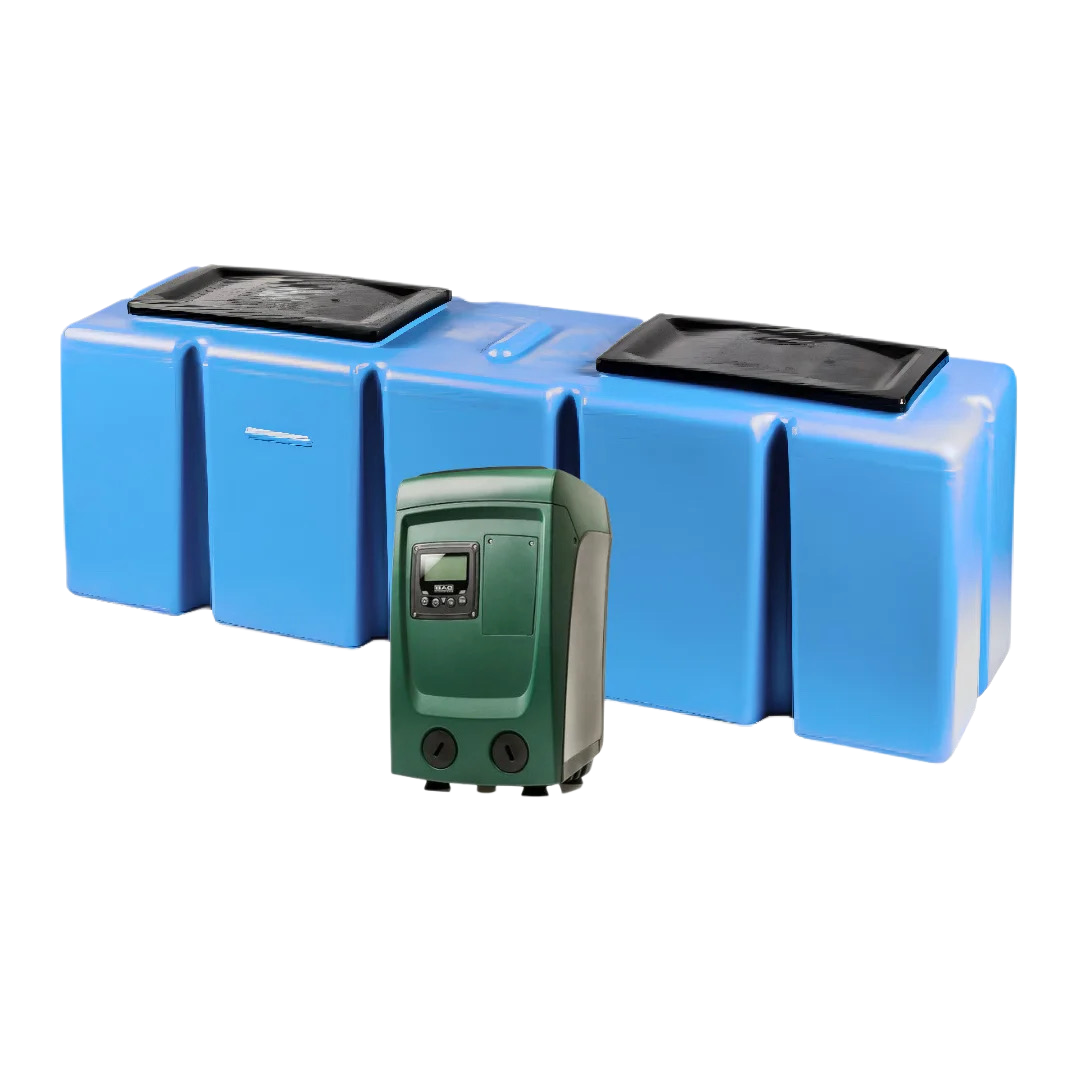

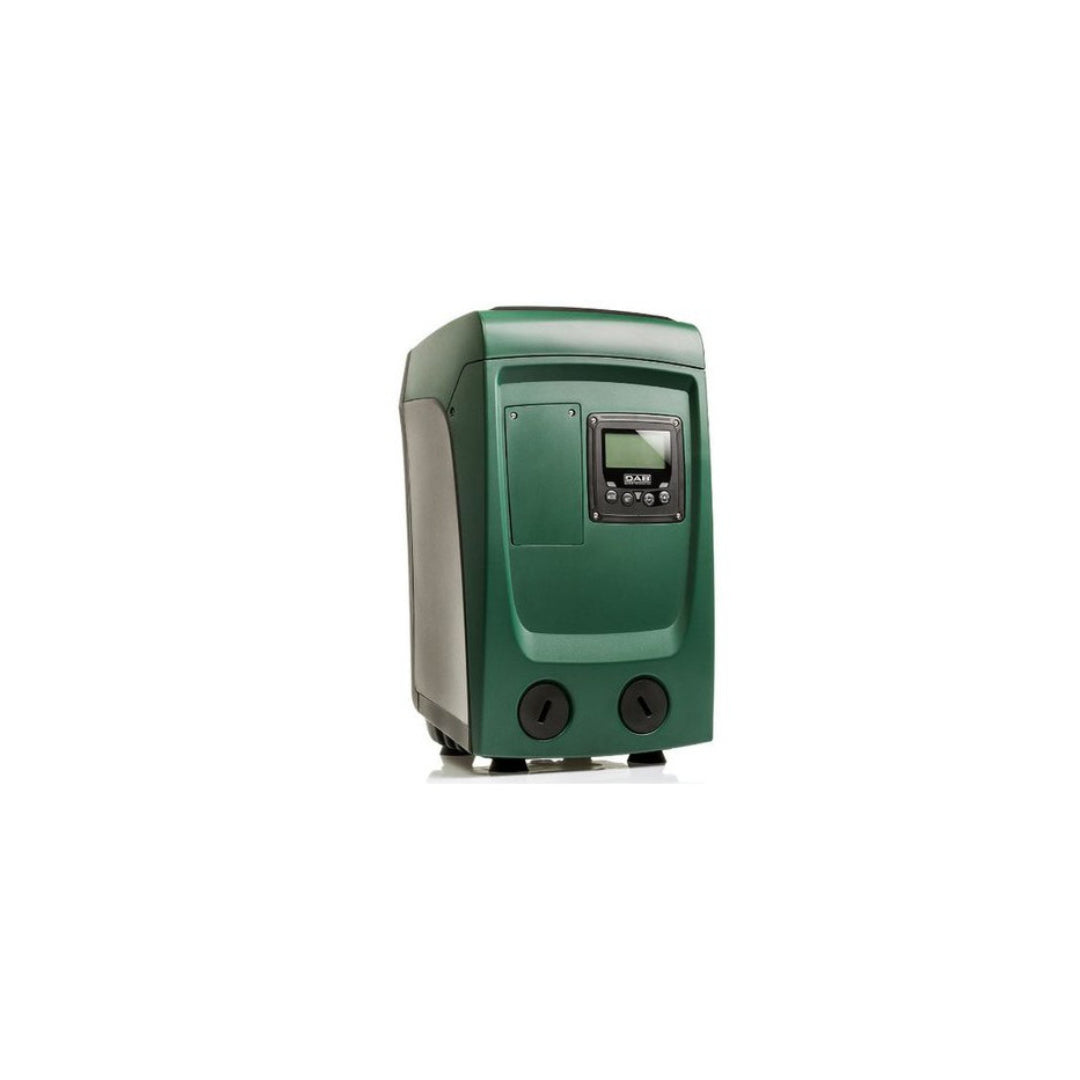

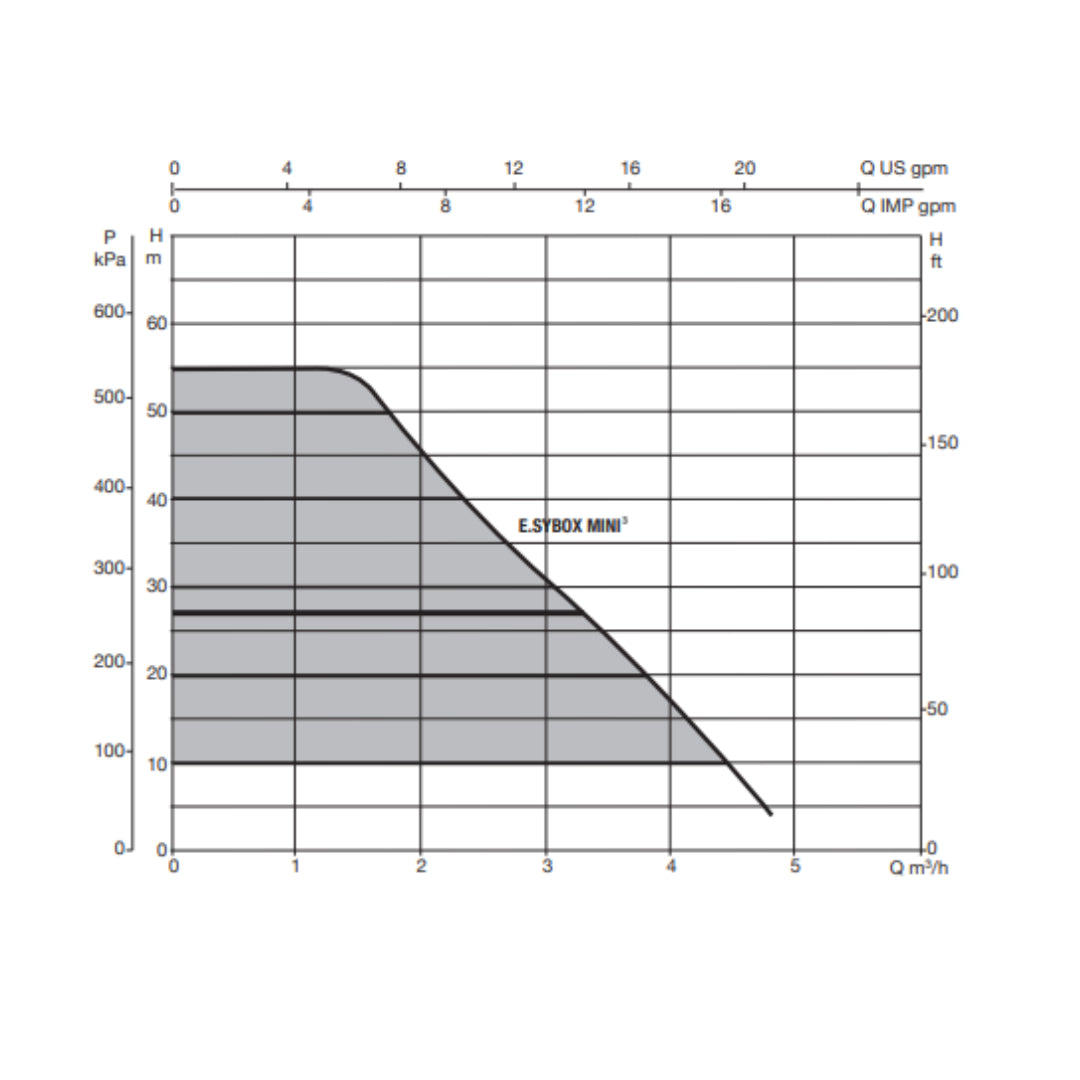

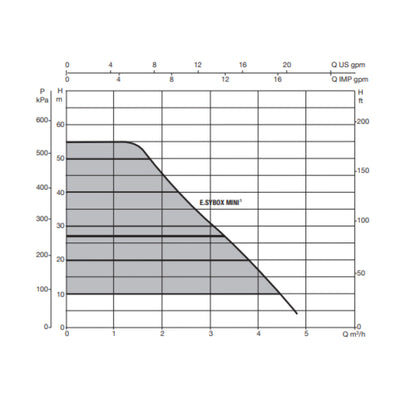

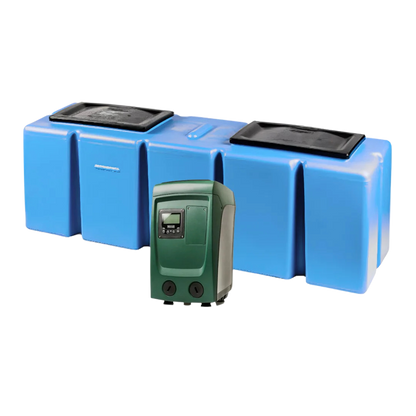

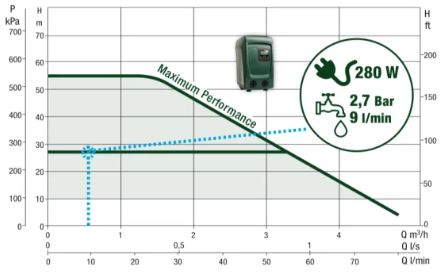

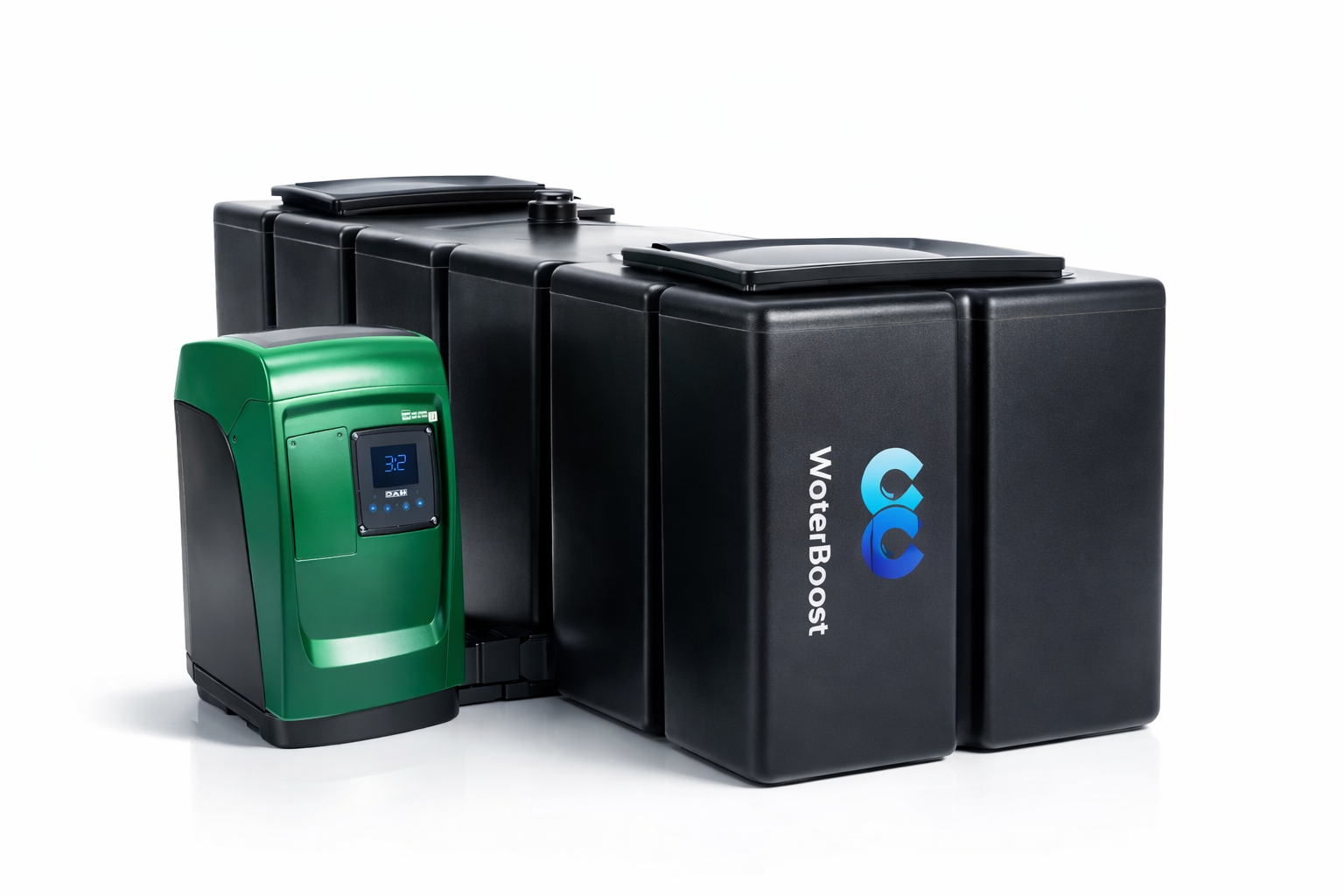

The system combines a 200-litre WRAS-approved coffin-style tank with the proven DAB Esybox Mini3 booster pump, delivering efficient and consistent pressure boosting of up to 50 litres per minute at 3 bar. This makes it an ideal choice for improving water performance to showers, taps, and household appliances without the footprint or complexity of larger boosting systems.

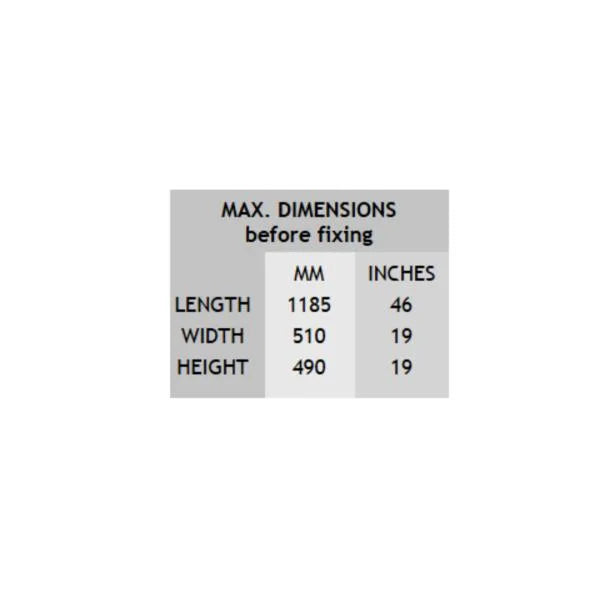

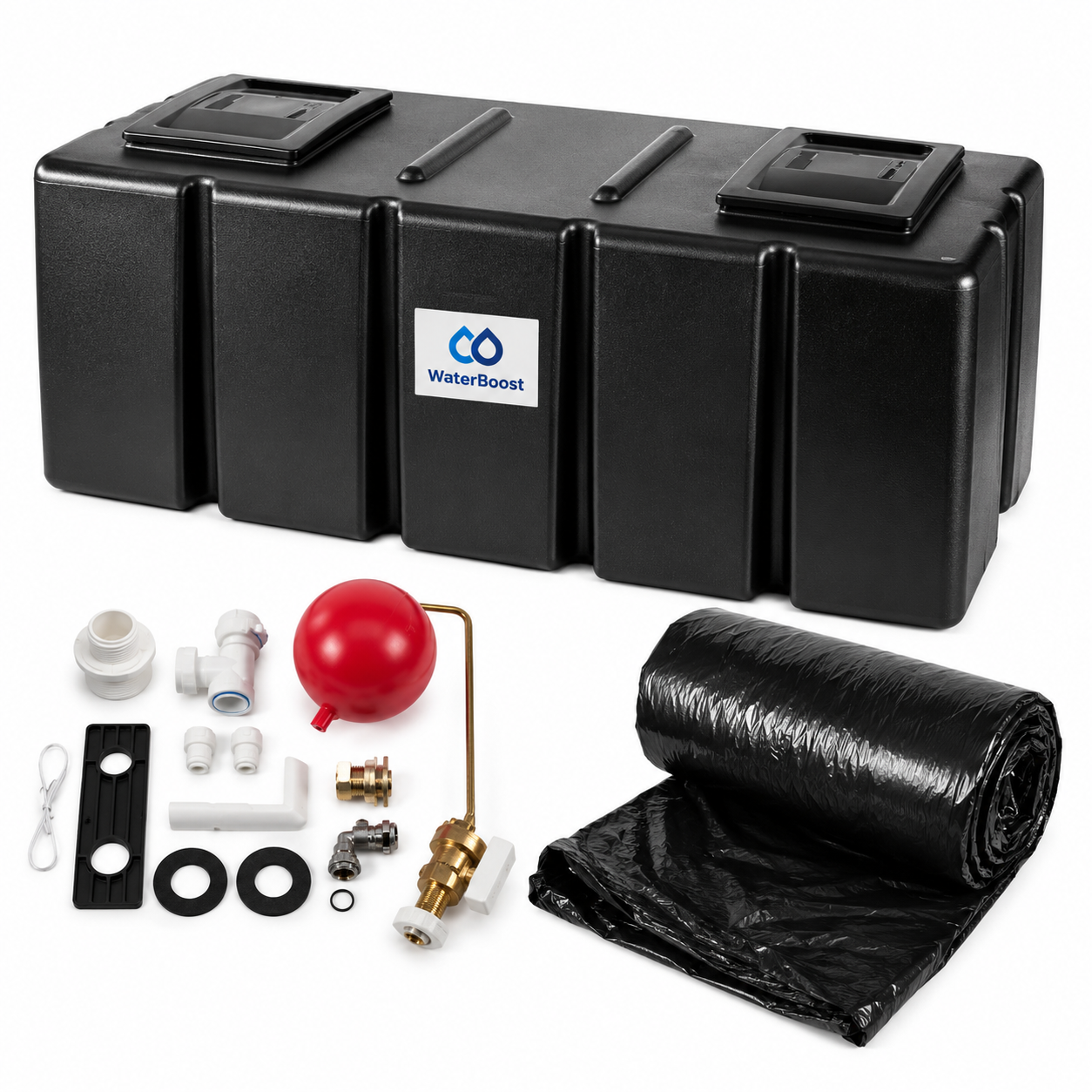

With a compact footprint of 1185mm (L) × 510mm (W) × 490mm (H), the WB-Coffin 200 Mini3 is perfectly suited to installations where height restrictions or limited access are key considerations, including garages, cupboards, and plant rooms. The tank is supplied pre-fitted with a By-law 30 kit and ½" ball valve, and all interconnecting pipework is included as standard.
WiFi · Google · Alexa WRAS tank & pump 490mm height Direct mains Pipework included 5.5 bar max
